Newarc
250 AMP TIG "THE VIPER" CONTROL UNIT HIGH FREQUENCY
PART NUMBER: NA9910308
£4,704.00 (Inc. VAT)
Call customer services for stock availabilityMininimum Order Quantity: 1
Description

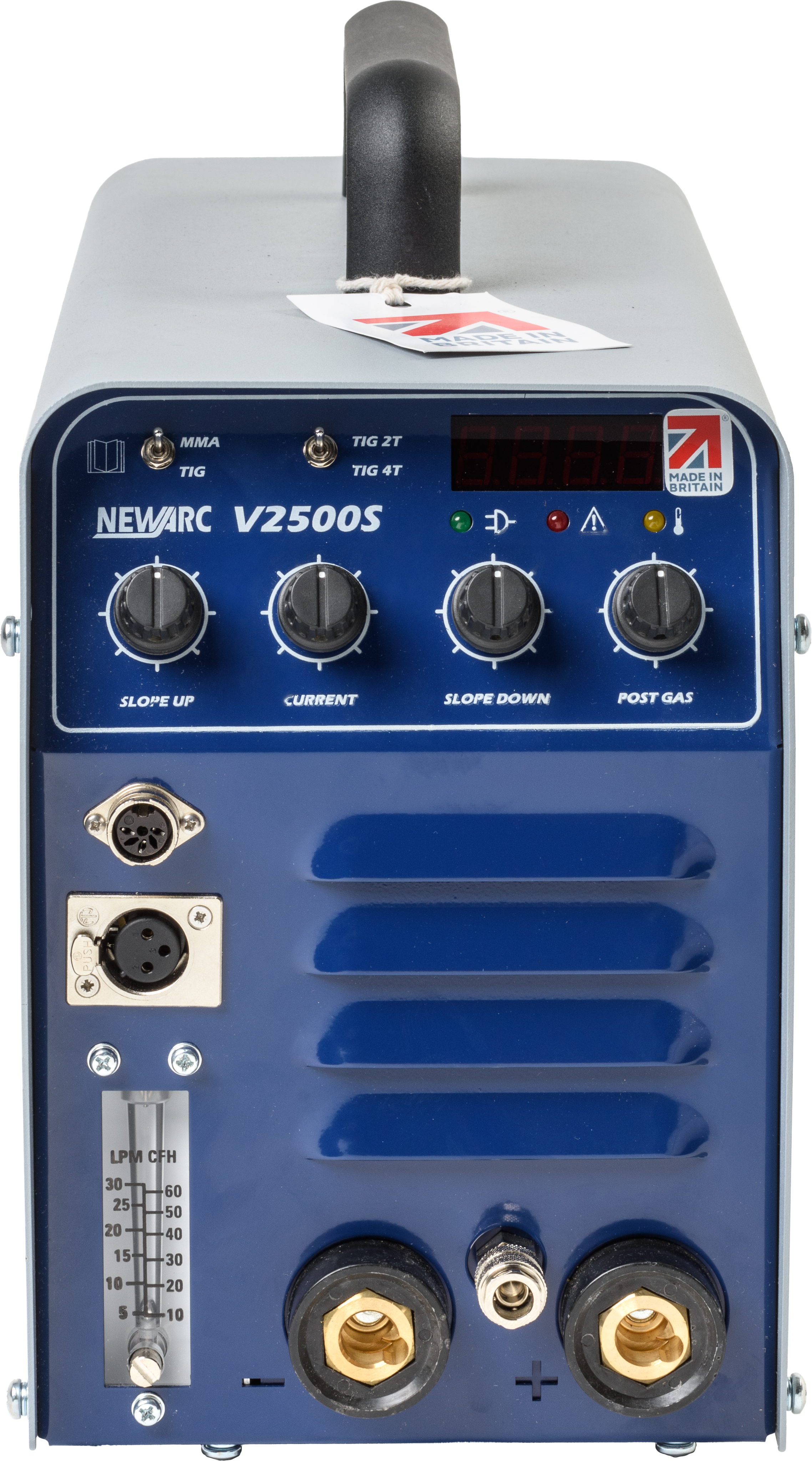

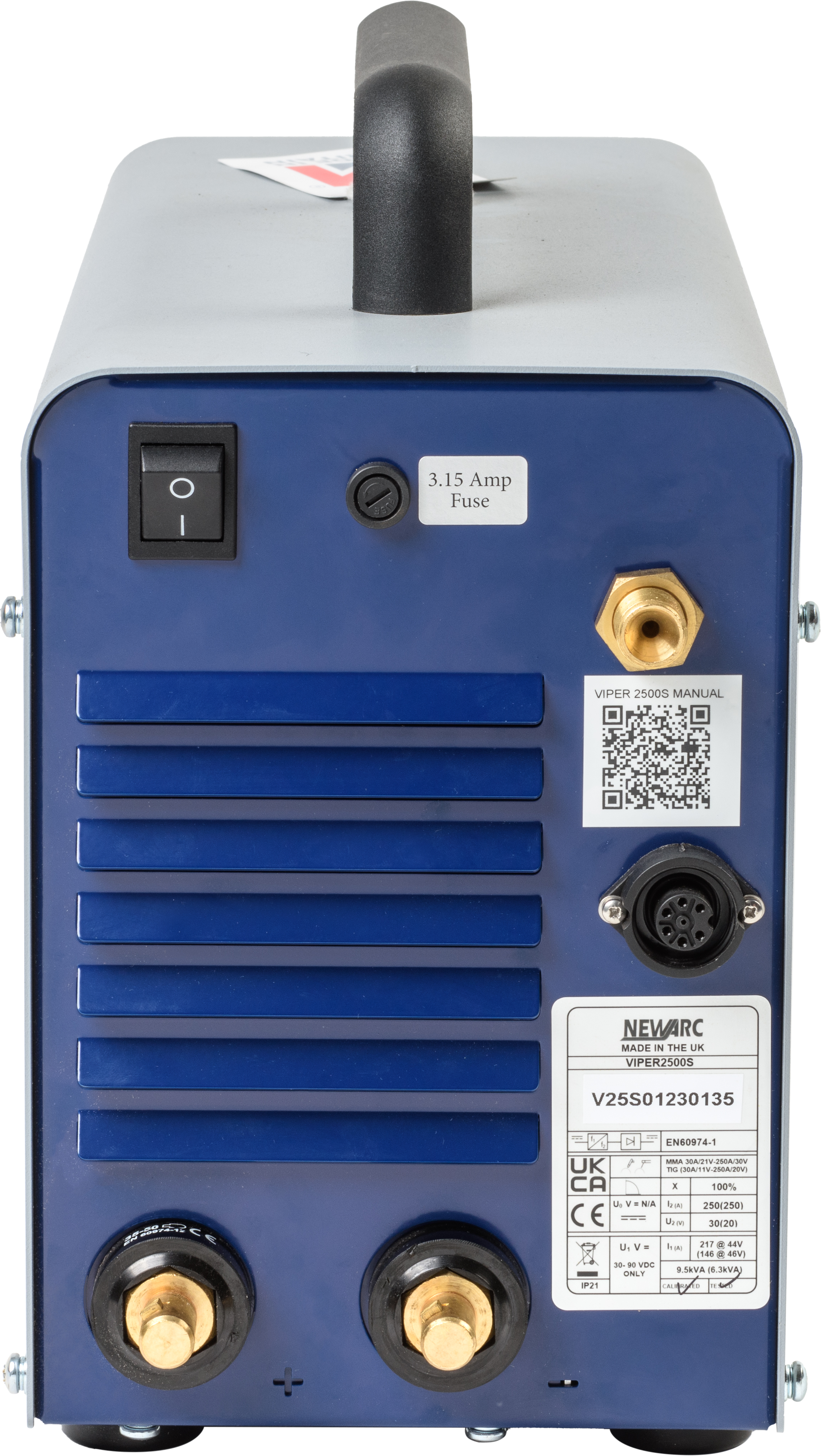

The Viper 2500S is a unique, compact TIG control unit that independently controls the welding current of any DC power source without the need for auxiliary or control cables. It operates from the open circuit voltage of any DC power source with an output of 40-100 V (petrol or diesel generators, rectifiers, inverters, etc.), can be used with one or two-piece torches, and provides excellent MMA and TIG welding characteristics. The Viper 2500S is a versatile and lightweight machine with variable current control, arc initiation, slope up and down, variable post-gas timng, torch switch latching, argon flow meter and digital display. Features: Input Range 40-100V, Output Current 250 Amps, Variable Current Control, Digital Display, Post Gas Timing, Arc Initiation, Slope Up & Slope Down, Torch Switch Latching, Argon Flow Meter, Duty Cycle 100% at 40ºC, H300 x W190 x L450mm, 14Kg
Specification
Category | Newarc |
Sub Category | Newarc Welding Machines |
Part Number | NA9910308 |
Weight | 16 KG |
