Extractability Mobile Systems
Multiple options available — select an option below

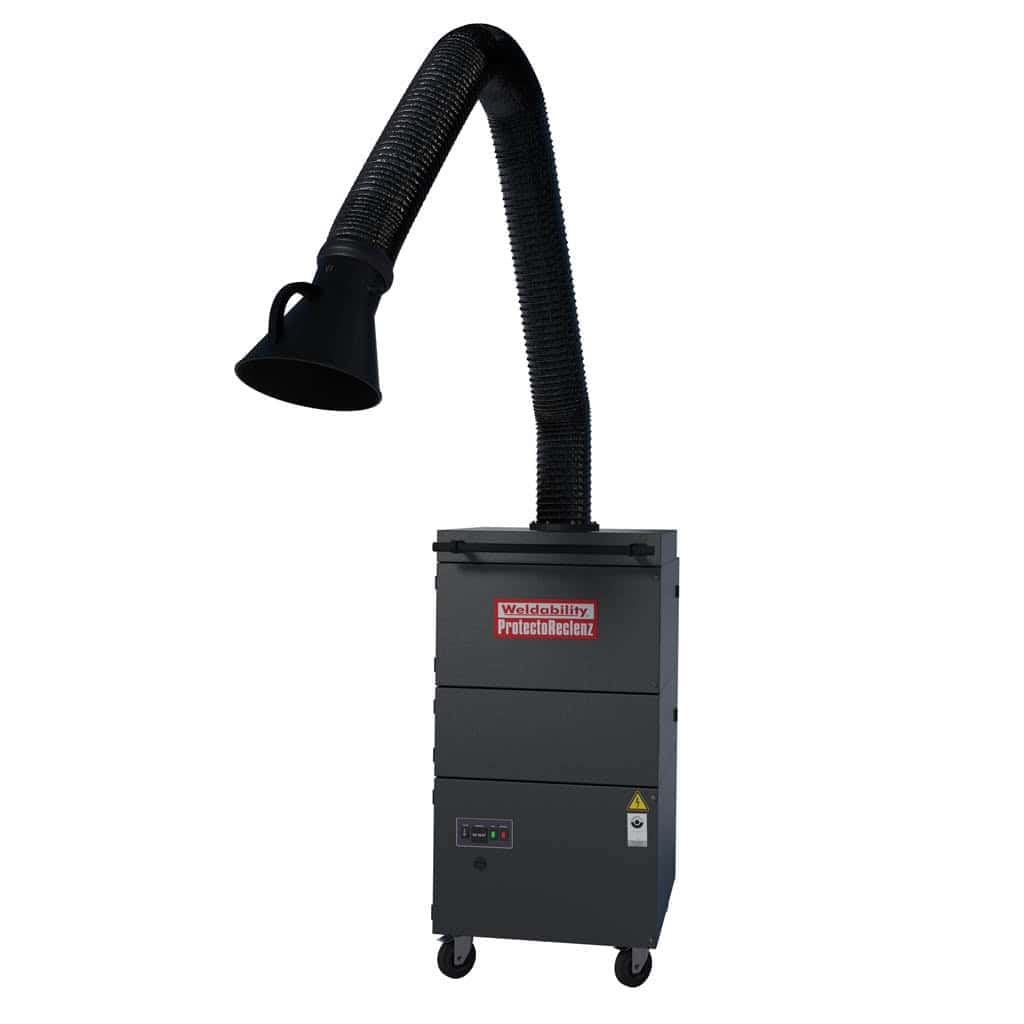

BGIA-approved mobile fume filter, type UPF-BIA class W3, incorporating a separator. Weighs 130kg and is supplied on swivel castors for manoeuvrability. A heavy-duty, long-life mobile fume extractor for use with unalloyed steel, precious metals, galvanised material and aluminium. Its manually cleanable filter suits processes generating large amounts of fume, and it is more powerful than the Xtract or the Xtra, meaning less time between cleans. An optional add-on for automatic cleaning is available.
01Length
02Voltage
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | MIG/TIG/OxyAce/Plasma/Grinding Steel |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | Yes - Manual |
| Dimensions | 665mm x 820mm x 1365mm |
| Extraction Point | 1 |
| Filter Efficiency | W3 |
| Filter Life | 3-5 years |
| Filters | EXT10025191 |
| Volume Flow | 3000m³/hr |
| IP Rating / ISO Class | IP54 / F |
| Noise Level | 78 dB (A) |
| Power | 1.1kW |
| Spare Parts | EXT66200, EXT978015, EXT201700401, EXT201700402, EXT9760200012111, EXT9760300012111, TWN010, TWN108993 |
| Weight | 130kg |
| Hose Diameter (mm) | 150 |
Documents & downloads
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet — if you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks — you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoAirfill Mobile Fume Filter Range, Class W3
It is a BGIA-approved mobile fume filter unit (UPF-BIA Class W3) with a built-in separator, mounted on swivel castors for manoeuvrability. It weighs around 130kg and is built as a heavy-duty, long-life mobile fume extractor.
It is designed for use with unalloyed steel, precious metals, galvanised material and aluminium, and the specification lists MIG, TIG, OxyAce, plasma and grinding steel applications.
Yes. It uses a manually cleanable filter, which makes it well suited to processes that generate large amounts of fume, with less downtime between cleans than the Xtract or Xtra. An optional add-on for automatic cleaning is available.
It provides a volume flow of 3000m³/hr from a 1.1kW motor, with a noise level of 78 dB(A). It has a single extraction point and a 150mm hose diameter.
The ProtectoAir uses the EXT10025191 filter cartridge, with a stated filter life of 3-5 years depending on use.
It is available in 110V and 230V. As a trade-only supplier, we ask you to request a trade account to see pricing and order; there is no minimum order and UK delivery is free over £150.
