Extractability Mobile Systems
Multiple options available: select an option below

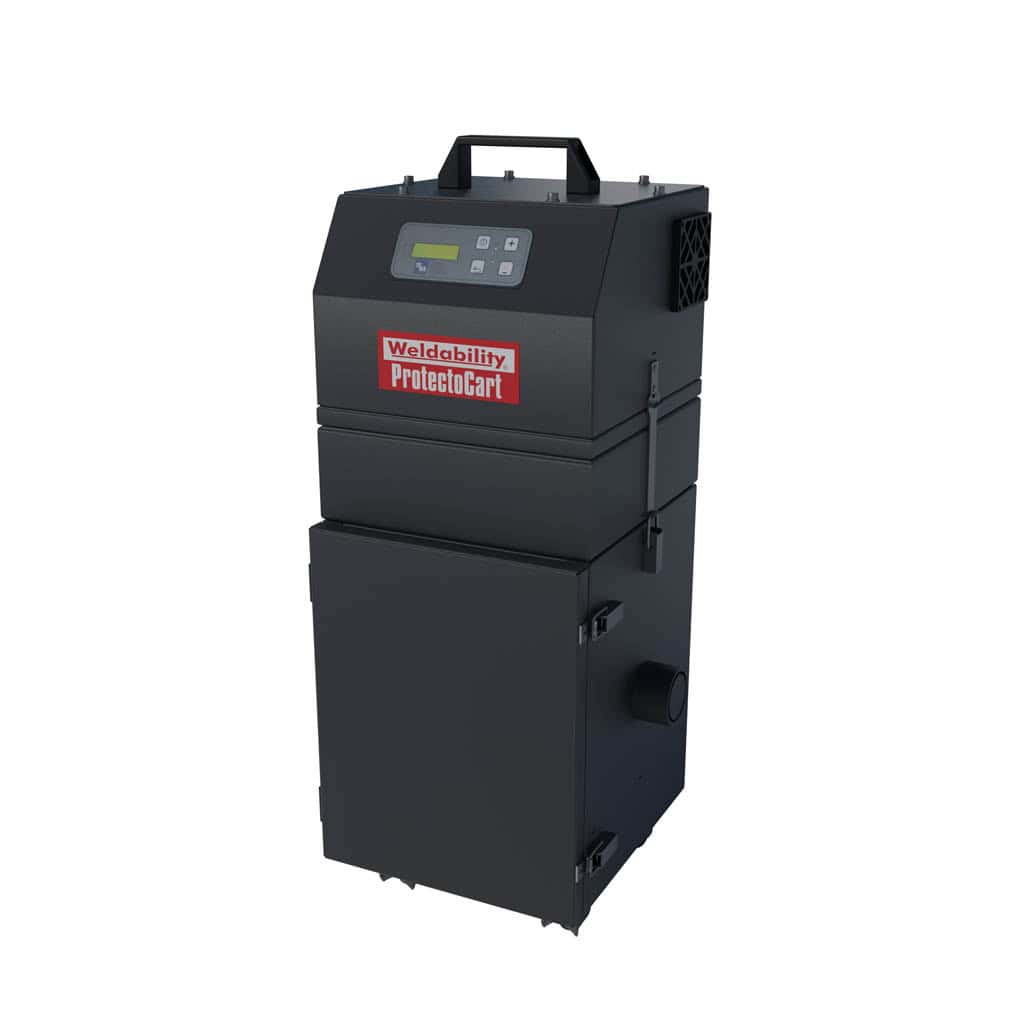

Compact and affordable high-vacuum mobile cartridge filter that can be manually cleaned with compressed air. Its space-saving design and strong negative pressure make it a viable light-duty option for evacuating and filtering the fumes and particles produced by a variety of welding applications. Fitted with 2 x 50mm suction ports.
01Voltage
Price on application. This variant is quoted per order. Send an enquiry with your quantity and the trade desk will price it.
Save to a list
Next day delivery available on UK orders carriage & areas
Your trade price … / unit
Added to cart ✓. View cart
Price on application
There's no standard list price for this item. It's quoted per order, against the quantity and specification you need.
Trade-only No minimum order Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk for sharper prices on larger quantities.| Application | MIG, TIG |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | Yes - Manual |
| Dimensions | 300mm x 300mm x 697mm |
| Extraction Point | 2 |
| Filter Efficiency | W3 |
| Filter Life | 3-5 years |
| Filters | EXT100281 |
| Volume Flow | 320m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Length | No Arm |
| Noise Level | 62 dB (A) |
| Power | 1.2kW |
| Weight | 28kg |
| Spare Parts |
Documents & downloads
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet. If you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks, you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoCart Mobile Cartridge Filter Range
It is a compact, high-vacuum mobile cartridge filter unit for evacuating and filtering welding fumes and particles. It is a light-duty option with a space-saving design, weighing around 28kg.
It is suited to MIG and TIG welding, and its high negative pressure makes it a viable light-duty extractor for a variety of welding applications.
Yes. The cartridge filter can be manually cleaned with compressed air, which helps maintain performance and extend filter life.
It has two extraction points, with 2 x 50mm suction ports, so it can serve more than one pick-up point.
It provides a volume flow of 320m³/hr from a 1.2kW motor, with a low noise level of 62 dB(A). It uses the EXT100281 replacement cartridge.
It is available in 110V and 230V. Weldability SIF is trade-only, so request a trade account to view prices and order; there is no minimum order and UK delivery is free over £150.
