Extractability Fixed Systems
Multiple options available — select an option below

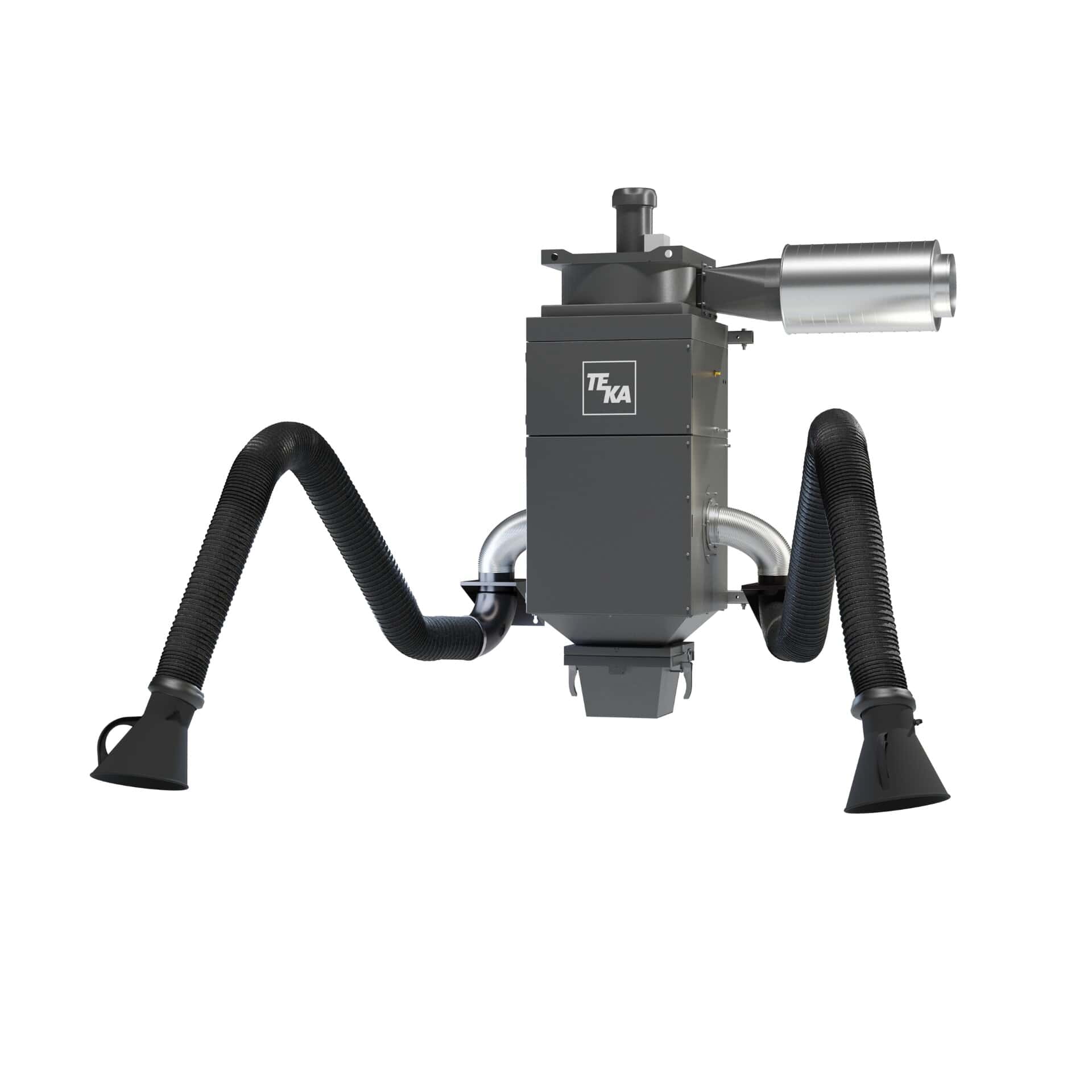

The ProtectoAutoclenz Wall Twin is a self-cleaning, wall-mounted welding fume filter incorporating a separator and two durable large-surface-area filter cartridges, complete with a filter monitor, post-cleaning function and hour meter. The unit handles up to 3500 m³/hr and is available with 2 x 2, 3 or 4m, 150mm-diameter hose-type arms with internal support structure. It is fitted with a 2.2kW fan set and supplied with a 5m mains input cable, weighing 165kg.
01Length
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | MIG/TIG/OxyAce/Plasma/Grinding Steel |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | Yes - Automatic |
| Dimensions | 665mm x 981mm x 1625mm |
| Extraction Point | 2 |
| Filter Efficiency | W3 |
| Filters | EXT10025, EXT9510050001 |
| Volume Flow | 3500m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Noise Level | 72 dB (A) |
| Power | 2.2kW |
| Spare Parts | EXT10228, EXT66200, EXT96301, EXT96303, EXT975302111, EXT1051342111, EXT9760100012111, EXT9760200012111, EXT9760300012111 |
| Voltage (V) | 415 |
| Weight | 165kg |
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet — if you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks — you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoAutoclenz Twin Arm Wall-Mounted Range
It is a self-cleaning, wall-mounted welding fume filter with two extraction arms, capturing fume at the source with airflow of up to 3500 m³/hr. Wall mounting keeps floor space clear.
The two arms are 150mm diameter and can be specified in 2m, 3m or 4m lengths.
Yes. It has an automatic self-cleaning function with a post-cleaning cycle, a filter monitor and an hour meter.
It is rated for MIG/TIG, OxyAcetylene, plasma and grinding on steel, using W3-class filtration (IP54 / class F).
It runs on 415V with a 2.2kW fanset and is supplied with a 5m mains input cable, running at 72 dB(A).
