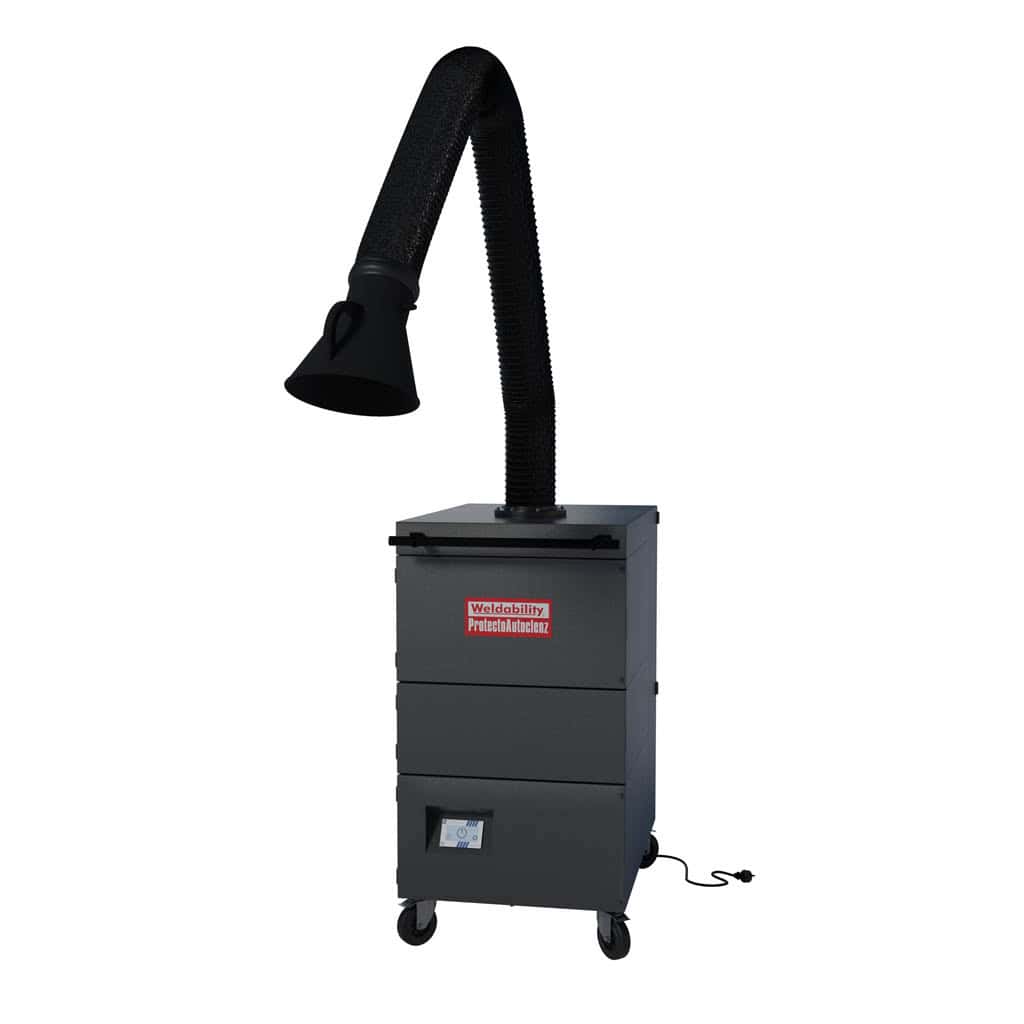

ProtectoAutoclenz Twin is a self-cleaning mobile fume filter (type PF) for welding fume extraction, incorporating a separator and a durable large-surface-area filter cartridge. It includes a filter monitor, a post-cleaning function and an hour meter, and is capable of handling airflow up to 3,500 m³/hr. The unit runs on a 2.2 kW fan set, supplied with a 5m mains input cable, and is mounted on swivel castors for manoeuvrability around the workshop.
01Length
02Extraction Point
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | MIG/TIG/OxyAce/Plasma/Grinding Steel |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | Yes - Automatic |
| Dimensions | 665mm x 981mm x 1625mm |
| Filter Efficiency | W3 |
| Filters | EXT10025, EXT9510050001 |
| Volume Flow | 3500m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Noise Level | 72 dB (A) |
| Power | 2.2kW |
| Spare Parts | EXT66200, EXT978015, EXT970002111, EXT9760100012111, EXT9760200012111, EXT9760300012111 |
| Voltage (V) | 415 |
| Weight | 190kg |
Documents & downloads
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet — if you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks — you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoAutoclenz Twin Mobile Fume Filter
It is a self-cleaning mobile welding fume filter that captures fume at the source and handles airflow of up to 3500 m³/hr. It is supplied on swivel castors for easy manoeuvring around the workshop.
It is available with one or two extraction points, and arms can be specified in 2m, 3m or 4m lengths (150mm diameter).
Yes, it has an automatic self-cleaning function with a post-cleaning cycle, plus a filter monitor and hour meter.
It is rated for MIG/TIG and grinding on steel, using W3-class filtration with an IP54 / class F rating.
It runs on a 415V supply with a 2.2kW fan set and comes with a 5m mains input cable.
