Extractability Mobile Systems
Multiple options available — select an option below

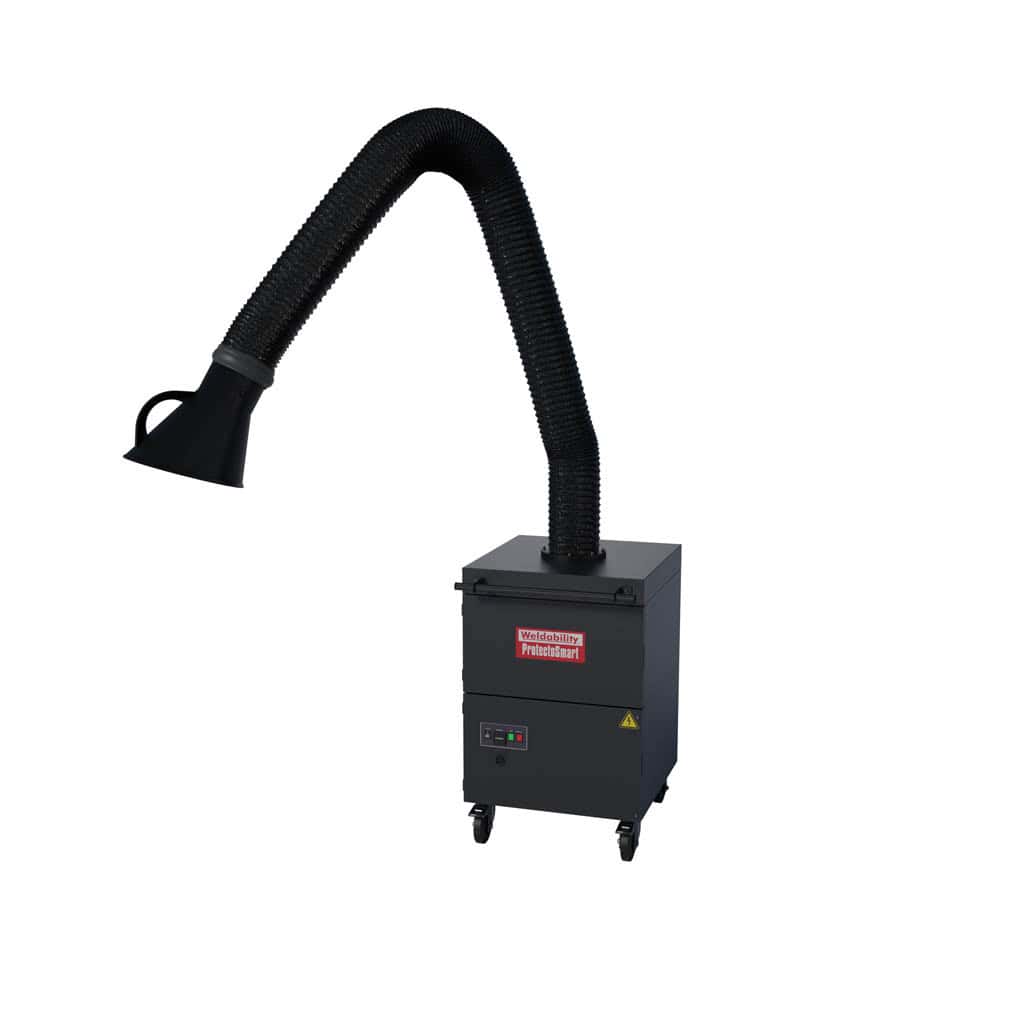

The ProtectoSmart is a mobile extraction system best suited to extracting and filtering fume gases, plus absorbing solvent fumes and odours, equipped with a flexible extractor arm or application-specific fittings. Polluted air is drawn into the extractor hood and through the arm to the filter unit, where coarse dust particles are caught in the pre-filter mat before finer dust is trapped in the particle filter at over 99% efficiency. The air then passes through an activated carbon cassette to refine gases and odours before being recirculated into the workshop via the exhaust grid.
01Length
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | Odours, Solvents |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | No |
| Dimensions | 665mm x 681mm x 1200mm |
| Extraction Point | 1 |
| Filter Efficiency | W3 |
| Filter Life | 1-3 Months |
| Filters | EXT10032, EXT100357 |
| Volume Flow | 2200m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Noise Level | 70 dB (A) |
| Power | 1.1kW |
| Spare Parts | EXT66200, EXT978015, EXT9760100012111, EXT9760200012111, EXT9760300012111, EXT97200190623001, TWN010 |
| Voltage (V) | 230 |
| Weight | 95kg |
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet — if you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks — you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoSmart Mobile Fume & Odour Extraction Range
It is best suited to extracting and filtering fume gases, as well as absorbing solvent fumes and odours. The specification lists odours and solvents as its main applications.
Polluted air is drawn through the extractor arm into a pre-filter mat that collects coarse dust, then through further filtering mats to a particle filter that traps very fine dust at over 99% efficiency, and finally through an activated carbon cassette that captures gases and odours.
Yes. It can be equipped with a flexible extractor arm or application-specific fittings to suit the task, with arm lengths of 2m, 3m and 4m listed.
It uses the EXT10032 pre-filter mat and the EXT100357 filtering cassette. Filter life is stated as 1-3 months, depending on how heavily the unit is used.
It provides a volume flow of 2200m³/hr from a 1.1kW motor at 230V, with a noise level of 70 dB(A) and a single extraction point. It weighs around 95kg.
