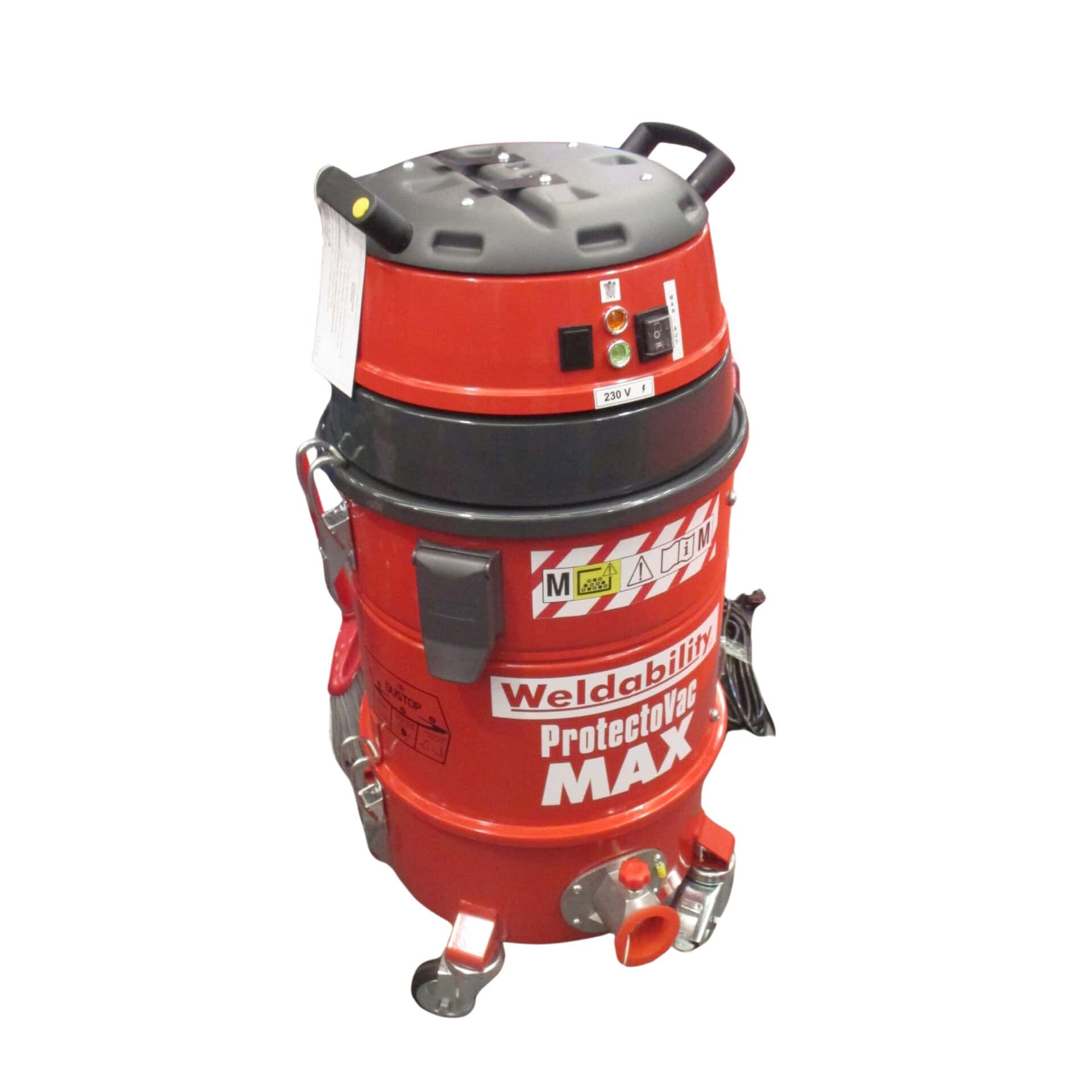

The ProtectoVac MAX is a highly portable extraction unit designed specifically to extract and filter metal particulate fumes arising from welding processes, suited to use in the workshop, demonstration training bay, garage and on site. It features a 'Dust Stop' semi-automatic cleaning system that lets the operator clean the filter simply by lifting the flap on the chamber, a 15 litre detachable dust collection chamber with handle, a 2.5m hose and nozzle with magnetic base, and a metal pre-filter to stop sparks. It is available in 110V or 230V, with castors fitted for easy manoeuvrability.
01Voltage
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | MIG, TIG |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | No |
| Dimensions | 590mm x 480mm x 1050mm |
| Extraction Point | 1 |
| Filter Efficiency | M Class |
| Filter Life | 3-5 years |
| Filters | EXTSVAC03 |
| Volume Flow | 180m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Length | MAX |
| Power | 1.0kW |
| Spare Parts | EXT1VACMAX110, EXT1VACMAX230, EXT963171, EXT1000050, TWN010, TWN108993 |
| Weight | 32kg |
