Extractability Mobile Systems
Multiple options available — select an option below

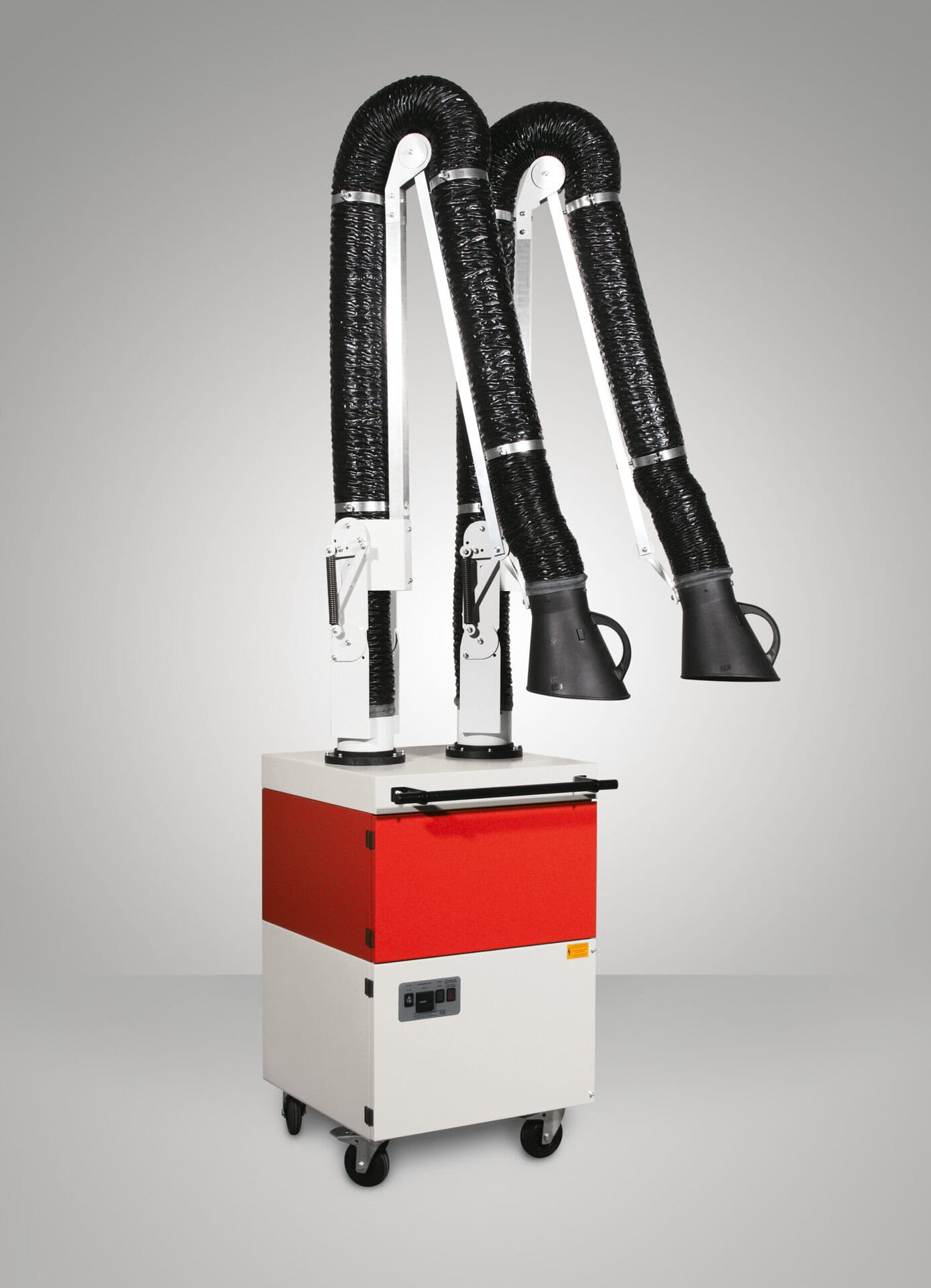

ProtectoXtract is a twin-arm mobile extraction system for filtering particulate fumes, dusts and some gases at source. The unit runs from a 415V mains input supply and is mounted on swivel castors for manoeuvrability around the workshop floor.
01Length
Save to a list
Next day delivery available on UK orders · carriage & areas
Your trade price — / unit
Added to cart ✓ · View cart →
Trade-only · No minimum order · Free UK delivery over £150.
Buying in bulk? Call us for volume pricing 01462 482200 Speak to the trade desk — sharper prices on larger quantities.| Application | MIG/TIG/Grinding Steel |
|---|---|
| Arm Diameter (mm) | 150 |
| Cleanable | No |
| Dimensions | 665mm x 681mm x 1075mm |
| Extraction Point | 2 |
| Filter Efficiency | W3 |
| Filter Life | 200 hours |
| Filters | EXT10029, EXT10032, EXT100008 |
| Volume Flow | 3500m³/hr |
| Hose Diameter (mm) | 150 |
| IP Rating / ISO Class | IP54 / F |
| Noise Level | 72 dB (A) |
| Power | 2.2kW |
| Spare Parts | EXT66200, EXT978015, EXT97320100150, EXT9760200012111, EXT9760300012111 |
| Voltage (V) | 415 |
| Weight | 130kg |
Documents & downloads
Part of the Extractability range The UK's largest independent fume & dust extraction stockholder Explore Extractability Reviews
No reviews yet — if you've used this product, yours would be the first.
Trade customers can review this product. Sign in to leave yours.
Thanks — you've already reviewed this product.
Related in this range
Extractability Options
Extractability Options
Extractability Options
Extractability Options ProtectoXtract Twin-Arm Mobile Extraction Range
It is a twin-arm mobile extraction system for filtering particulate fumes, dusts and some gases, handling airflow of up to 3500 m³/hr. It is supplied on swivel castors so it can be moved to where it is needed.
No, it is not a self-cleaning unit; it uses replaceable filters. The stated filter life is around 200 hours, after which the filters are changed out.
It is rated for MIG/TIG and grinding on steel, with W3-class filtration (IP54 / class F).
It can be specified with one or two extraction arms in 2m, 3m or 4m lengths, each 150mm in diameter.
It runs on a 415V supply with a 2.2kW fan and runs at 72 dB(A).
